Bridge steel, foundation pipe and site safety — from one workshop
Four ranges that cover a crossing from the pile tip to the handrail. Each line can be ordered on its own, or consolidated into one shipment with a single packing list.
Spiral Welded Steel Pipe
Piles, casings and trestle legs from Ø219 to Ø3,000 mm. Double-sided submerged-arc welding, end preparation to suit driving or bolting.
- Ø219–3,000 mm
- Wall 6–25 mm
- GB/T 9711 / API 5L / ASTM A252

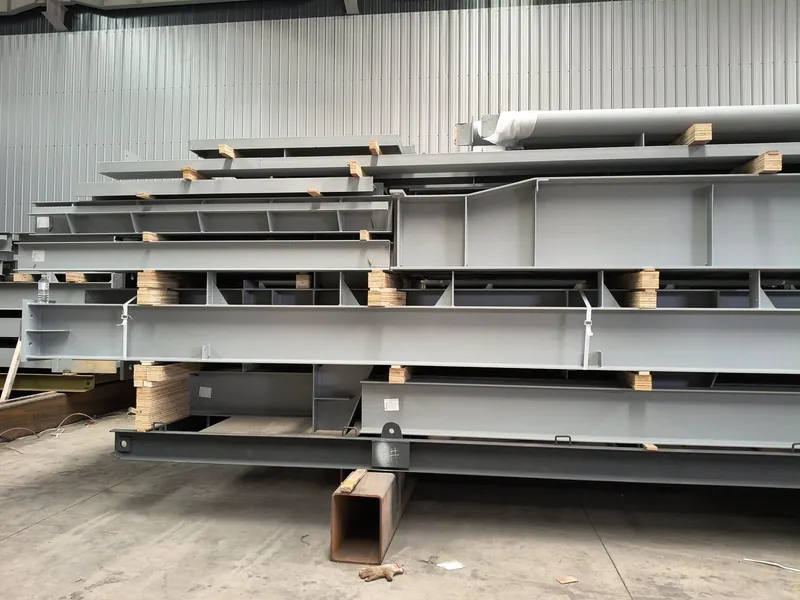

H-Beam & Bailey System
321 and 200 Bailey panels with the complete accessory set, plus welded H-beams for approach spans and temporary crossings.
- 321 / 200
- Q345B / A572 Gr.50
- Full accessory set
Ringlock Scaffolding
Heavy-duty falsework for pier caps and cast-in-place decks. Ø60.3 and Ø48.3 standards, rosette nodes, adjustable bases and U-heads.
- Ø48.3 / Ø60.3
- Q355B / A572 Gr.50
- JGJ 231 / EN 12810 / OSHA 1926

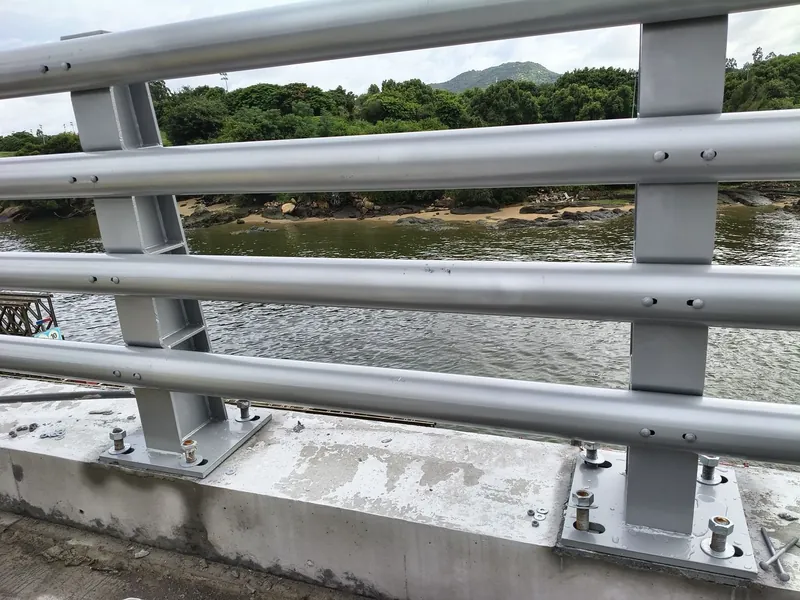

Bridge Guardrail
Three-tube railing, W-beam barrier and pedestrian handrail for highway and marine crossings, galvanised or duplex-coated.
- EN 1317
- AASHTO M180
- HDG 85 µm
Which range fits your scope?
| Range | Typical use | What we need to quote | Lead time |
|---|---|---|---|
| Spiral pipe | Bored / driven piles, marine trestle legs, permanent casing | OD, wall thickness, length, steel grade, end detail, coating | 20–35 days |
| H-beam & Bailey | Temporary road bridges, approach spans, construction access | Span, load class, panel type, deck width, accessory list | 25–40 days |
| Ringlock | Pier cap and deck falsework, marine platforms | Layout, deck height, leg load, standard diameter | 20–30 days |
| Guardrail | Highway, coastal crossing, pedestrian and cycle lanes | Rail type, post spacing, containment class, finish | 18–28 days |
Lead times are indicative and start from drawing approval, not from the order date.
Not sure which range you need? Send the drawing anyway.
We will tell you what is in scope, what is not, and where the cost sits.
