Bailey truss falsework standing on spiral welded steel pipe piles under a bridge deck over tidal water

Haicang Aoguan · falsework package

The steel that holds a sea crossing up while it is poured.

Spiral welded piles, Bailey trusses, ringlock falsework and deck steel for the Haicang Aoguan Avenue crossing in Xiamen — fabricated in Fujian and delivered to a site that sits over tidal water.

Walk the site record See the four ranges

321 / 200Bailey panels & trusses

Ø219+Spiral pipe to 3,000 mm

85 µmCoastal galvanising

FOBCIF / DAP terms

Project snapshot On site

Location: Aoguan Bay, Haicang, Xiamen
Structure: Cast-in-place deck
Foundation: Spiral welded pipe piles
Falsework: Bailey trusses + ringlock
Deck edge: Steel forms, barrier posts
Exposure: Tidal water, salt air
Stage: Deck works, ongoing

Photographed on site, October 2026. Open the full record →

Built to

GB/T 9711
ASTM A252
API 5L
SY/T 5037
ASTM A572
JGJ 231
OSHA 1926
EN 12810
EN 1317
AASHTO M180
ISO 9001

Product families

Four ranges, one steel supply chain

Foundation, superstructure, temporary works and safety barrier. Buy them separately or as a matched package for a bridge project.

01 · Foundation

Steel pipe pile group with capping steel and bracing at a marine pier

Spiral Welded Steel Pipe

Foundation piles, trestle legs and permanent casing for marine and river crossings. Spirally welded from hot-rolled coil, with end preparation to suit driving or bolted connection.

OD 219–3,000 mm
Wall 6–25 mm
Q235B / Q355B
Epoxy / galvanised

View range

02 · Superstructure

321 Bailey panel with pin holes and end posts, green painted, stacked in the yard

H-Beam & Bailey System

Welded H-beam girders and the full Bailey component set: 321 and 200 panels, chords, transoms, decking, sway braces and pins — one bill of materials for the whole span.

321 / 200 panels
Q345B
Welded H-beams
Full accessory set

View range

03 · Temporary works

Ringlock falsework standing along the edge of a bridge deck under construction

Ringlock Scaffolding

Heavy-duty falsework for cast-in-place bridge decks, pier caps and marine platforms. Standard and ledger frames, rosette connections, adjustable bases and U-heads.

Ø48.3 × 3.2
Ø60.3 × 3.2
Q355B
HDG / painted

View range

04 · Safety

Bridge Guardrail

Three-tube bridge railing, W-beam crash barrier and pedestrian handrail for highway and marine crossings. Hot-dip galvanised or duplex-coated for coastal service.

EN 1317
AASHTO M180
HDG 85 µm
SS304 / duplex

View range

Project spotlight

Haicang Aoguan Avenue, Xiamen

A sea crossing built almost entirely over tidal water. The photographs below are from our own site file: pile groups, Bailey trusses, ringlock along the edge, and the forms that cast the barrier plinth.

Open the site record

Bailey trusses and deck formwork on steel pipe pile bents along a sea crossing

Sea crossing · 2026

Falsework over tidal water

Piles, trusses and edge steel set out from one survey line — and struck behind the pour.

Looking along the underside of the trestle over water

Under the deck — pipe piles and bracing

Reinforcement and formwork laid out on the falsework deck

Deck layout on the falsework

Marine foundationSpiral welded pipe piles, capping steel and bracing to drawing.

Bailey falsework321 / 200 trusses and transoms, one bill of materials per span.

Deck worksReinforcement, kerb and plinth cast on the falsework.

BarrierBase-plate posts and three-tube rail, galvanised for salt air.

From the site

What the work actually looks like

No renders and no stock photography. These are the working levels, the pile heads and the edge details that decide whether a falsework package performs.

All site photographs

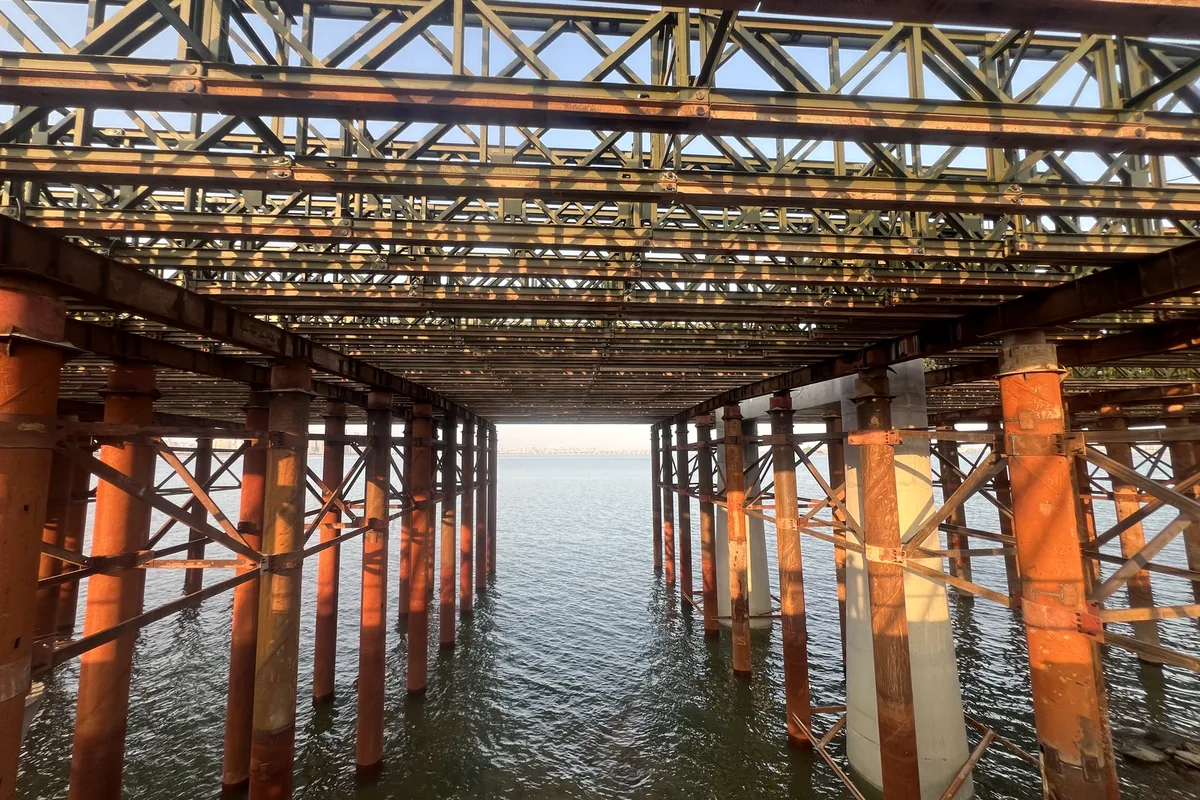

Underside of a bridge trestle: pipe piles, cross bracing and Bailey trusses over water

Under the deck — the water is the working level below

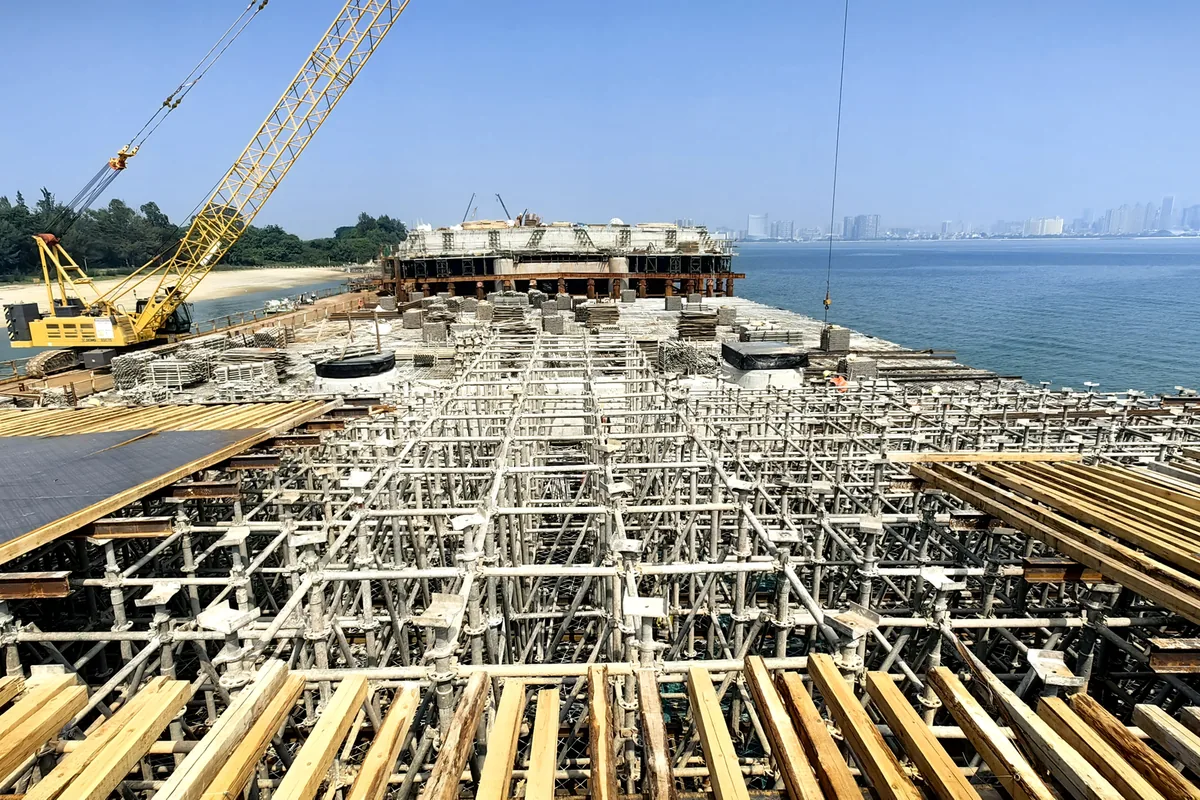

Reinforcement and formwork on the falsework deck with a crawler crane at the edge

Deck reinforcement on the falsework

Pile-head jacks and capping plates under a concrete pier cap

Pile-head jacks, set to level

Aerial view of the cast bridge deck and barrier line curving along the bay

Deck and barrier line from the air

Site footage The crossing from the air

Welder fitting stiffener plates on a steel beam in the fabrication hall

Fabrication hall · 10 t overhead cranes

Manufacturing

Cut, fit, weld and coat under one roof

Our workshop runs plate cutting, fit-up, submerged-arc and CO₂ welding, CNC drilling and surface treatment in a single flow. That means the pile cap, the Bailey transom and the guardrail post on the same project share one welding procedure and one inspection standard.

WPS / PQR qualified welding, welder certificates on file
Dimensional check against the shop drawing before coating
Shot blast to Sa 2.5, then zinc-rich primer or hot-dip galvanising
Marking, bundle list and loading plan issued before shipment

Inside the workshop

Capability

Built for project schedules, not catalogue orders

Ask for a capacity sheet

01 / DRAWING FIRST

Shop drawings before steel

We return marked-up drawings with hole positions, splice details and camber within 3–5 working days, so the approval loop does not sit on the critical path.

02 / MIXED CONTAINERS

Four ranges, one container

Piles, panels, falsework and railing can be consolidated into a single shipment with one packing list — useful when a contractor sources the whole bridge package.

03 / COASTAL GRADE
